Tyre pallets (passenger car)
GAWRONSKI "Goodyear" E3 pallets
In the tyre industry, our pallet system for storing and transporting tyres has successfully asserted to become the market leader.

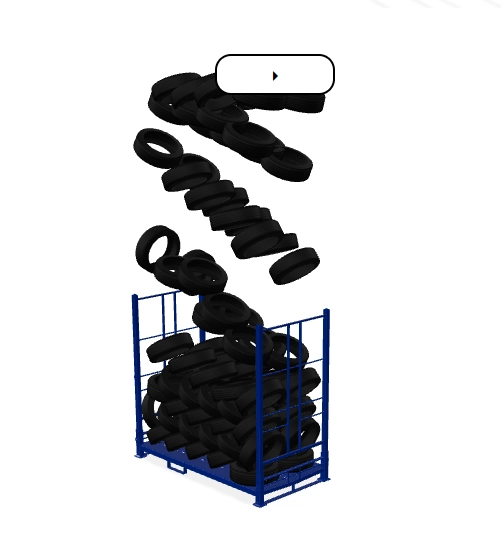

The original one is produced by us! The widespread Goodyear pallet (E3 pallet) was developed byGAWRONSKI together with “Goodyear” for the purpose of the most practicable application in practice. It must be optimal for the transport of tyres, be flat and robust for the return transport of empties as well as extremely stable for space-saving stacking of the pallets in warehousing. Our original pallet has an empty weight of 185-190 kg and is designed for a total weight of 1,000 kg.
Our specifications are your guarantor for static, strength and long durability during rough warehouse operation. In most warehouses, 4 pallets are stacked on top of each other. The “Goodyear pallet” is designed for 5-fold stacking and confirmed by the TÜV as well as independent testing authorities. Whether with of without insertion bars: The E3 pallet offers you maximum stability and flexibility.
Technical data: E3 passenger car pallet with bars
- Dimensions: 2395x1249x2200 mm
- Dead weight: approx. 185 kg
- max. load (surface load): 1000 kg
- Stacking: 4-fold (interior area)
- Empty pallet stacking: 1 + 19-fold
- Warehouse capacity (rick rack): up to 120 tyres
- Steel grades: Killed steel S 235 JR acc. to EN 10027
- Painting: In 2 layers
1st layer – prime coat
2nd layer – top coat RAL 5002 blue silk-matt (abrasion-resistant) - max. static load of the corner column: Approx. 4,200 kg (1,050 kg / column)
Technical data: E3 passenger car pallet without bar
- Dimensions: 2395x1249x2200 mm
- Dead weight: approx. 185 kg
- max. load (surface load): 1000 kg
- Stacking: 4-fold (interior area)
- Empty pallet stacking: 1 + 19-fold
- Warehouse capacity (rick rack): up to 120 tyres
- Steel grades: Killed steel S 235 JR acc. to EN 10027
- Painting: In 2 layers
1st layer – prime coat
2nd layer – top coat RAL 5002 blue silk-matt (abrasion-resistant) - max. static load of the corner column: Approx. 4,200 kg (1,050 kg / column)
TÜV-GS tested safety
Der Typ E3-Palette bietet Ihnen maximale Stabilität und Flexibilität. So hat unser Original ein Leergewicht von 185-190 kg und ist TÜV-GS geprüft. Diese Vorgaben sind Ihr Garant für die Statik, Festigkeit und lange Lebensdauer im rauhen Lagerbetrieb. Die 5-fache Stapelung unserer Reifenpalette ist von einem unabhängigen Prüfinstitut bestätigt.
Type E3 - the car tyres pallet
We offer you the necessary flexibility for your tyre warehouse!
We would also be happy to convince you of our unique service.
This tyre pallet was developed by us and the tyre manufacturer Goodyear with regard to the objective of the most practicable application in practice.
In the meantime, our pallet type has developed to become the market leader among tyre pallets. High efficiency for the storage of tyres, optimal for transport, laid flat for back transport of the empties and thereby extremely robust and sturdy.
Our tire pallets
Tyre pallet for transport (passenger car) E4
The E4 type pallet has been designed for fast and safe transport of tyres. You can use the telescoping side parts to the full height of a truck. The pallets are loaded in your warehouse and the truck is quickly loaded and unloaded by means of a stacker. Due to the side parts the load safety is always ensured.
The pallet is designed for “short-haul” operation in distribution traffic or in warehouse intermediate traffic. The E4 pallet is only designed for transport and conditionally stackable (restriction with extended telescopic side parts).
For the storage in folded condition, the basic dimensions are identical with out E3 and E2 pallets.
Technical data:
- Dimensions: 2400x1250x2200-3000
- Dead weight: 220 kg
- max. payload: 1000 kg
- Colour: Blue / Yellow
- Stackable: conditionally stackable
- Hang-up bars: Retrofitting is possible (with restrictions on the telescope-side parts)

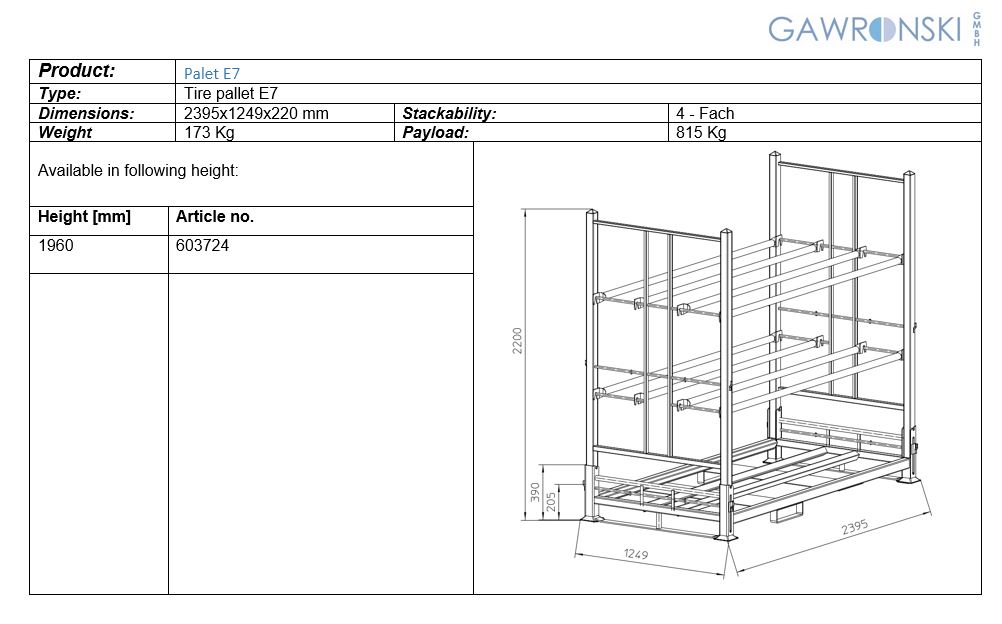

The complete wheel pallet (passenger car) E7
For the tyre-and-wheel storage, the type E7 pallet is best suitable for standing tyres.
You can select from two various standard heights for different tyre sizes.
Technical data E7, short
Suitable for standing storage and transport of passenger car tyres
- Dimensions: 2395x1249x1960 mm
(folded up): 2395x1249x390 mm - Pallet weight: Approx. 167 kg (net without bars)
- Bar weight: Approx. 7 kg/bar
- Stackability: 4x (interior area/level ground)
- Max. load: 1,000 kg (surface load/pallet)
- Colour: RAL 5002 Blue (abrasion-resistant surface)
- Tested and certified by RWTÜV
- Stable, secure and proved and tested version
- Suitable for the take-up by a forklift from the front or longitudinal side.
Technical data E7, long
Suitable for standing storage and transport of passenger car tyres
- Dimensions: 2395x1249x1960 mm
(folded up): 2395x1249x390 mm - Pallet weight: Approx. 173 kg (net without bars)
- Bar weight: Approx. 7 kg/bar
- Stackability: 4x (interior area/level ground)
- Max. load: 1,000 kg (surface load/pallet)
- Colour: RAL 5002 Blue (abrasion-resistant surface)
- Tested and certified by RWTÜV
- Stable, secure and proved and tested version
- Suitable for the take-up by a forklift from the front or longitudinal side.
